机器学习基石-数学篇:Why Can Machines Learn?

Coursera | Machine Learning Foundations - Mathematical Foundations | Hsuan-Tien Lin

 Thistledown    July 2, 2020

Course Link :

5 Training versus Testing

What we pay in choosing hypotheses during training: the growth function for representing effective number of choices …


5.1 Recap and Preview

  • Recap: the statistical learning flow

    • if $\mathcal{H} = M$ finite, $N$ large enough
      • for whatever $g$ picked by $\cal A$, $E_{out}(g) \approx E_{in}(g)$
    • if $\cal A$ finds one $g$ with $E_{in}(g) \approx 0$
      • PAC guarantee for $E_{out}(g) \approx 0$ $\Rightarrow$ learning possible
  • Two central questions

    image-20200702145131269

    • learning split to two central questions:
      • can we make sure that $E_{out}(g)$ is close enough to $E_{in}(g)$?
      • can we make $E_{in}(g)$ small enough?
    • what role dose $M$ ($\vert \cal H \vert$) play for the two questions?
  • Trade-off on $M$

    image-20200702145507168

    • using the right $M$ (or $\cal H$) is important
    • $M = \infty$ doomed?
  • Preview

    • Known

    • Todo

      • establish a finite quantity that replaces $M$

      • justify the feasibility of learning for infinite $M$

      • study $m_{\cal H}$ to understand its trade-off for right $\cal H$, just like $M$

    • mysterious PLA to be fully resolved after 3 more lectures 🎉

QUIZ

5.2 Effective Number of Lines

  • Where did $M$ come from?

    • BAD events $\mathcal{B}_m : \vert E_{in}(h_m) - E_{out}(h_m)\vert > \epsilon$

    • to give $\cal A$ freedom of choice: bound $\Bbb{P}[\mathcal{B}_1 \text{ or } \cdots \text{ or } \mathcal{B}_M ]$

    • worst case: all $\mathcal{B}_m$ non-overlapping

    • where did uniform bound fail to consider for $M = \infty$?

  • Where did uniform bound fail?

    • BAD events $\mathcal{B}_ m:\vert E_{in}(h_m) - E_{out}(h_m)\vert > \epsilon$

      • overlapping for similar hypotheses $h_1 \approx h_2$

        image-20200702151849980

    • Why?

      • $E_{out}(h_1) \approx E_{out}(h_2)$
      • for most $\cal D$, $E_{in}(h_1) = E_{in}(h_2)$
    • union bound over-estimating

    • to account for overlap, can we group similar hypotheses by kind?

  • How many lines are there?

  • Effective number of lines

    $N$ effective $(N)$
    $1$ $2$
    $2$ $4$
    $3$ $8$
    $4$ $14\ (<2^N)$
    • maximum kinds of lines with respect to $N$ inputs $\mathbf{x}_1, \cdots, \mathbf{x}_N \Leftrightarrow$ effective numbers of lines

      • must be $\le 2^N$
      • finite grouping of infinitely-many lines $\in \cal H$
      • wish:
  • if

    • $\text{effective}(N)$ can replace $M$ and
      • $\text{effective}(N) \ll 2^N$
  • learning possible with infinite lines.

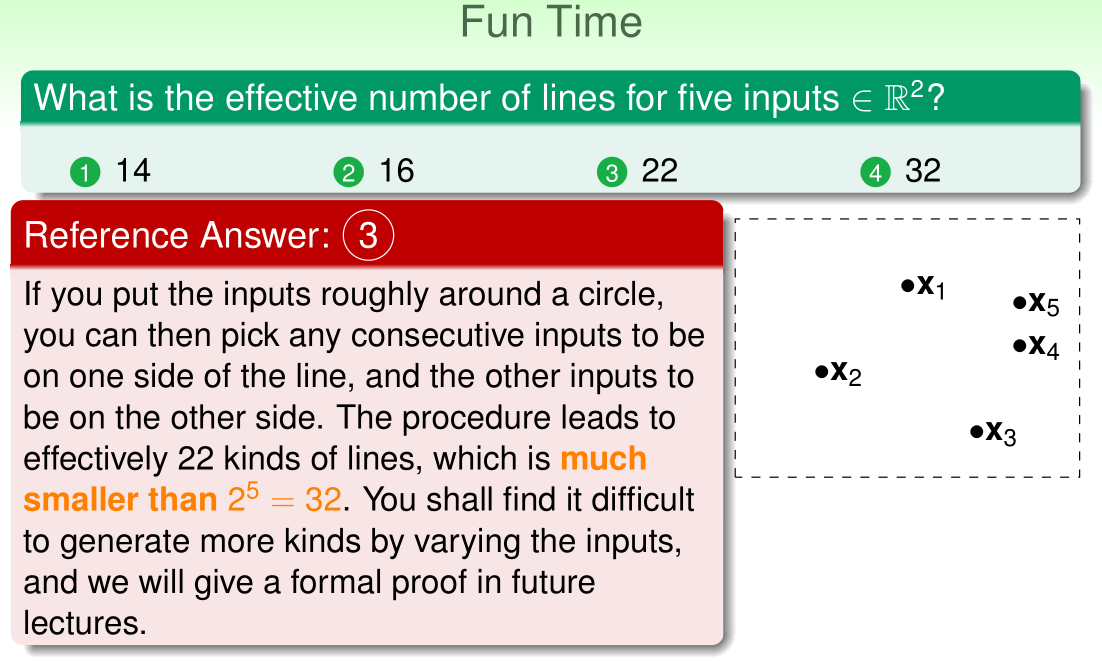

QUIZ

5.3 Effective Number of Hypothesis

  • Dichotomies: mini-hypothesis

    • call

    • a dichotomy: hypothesis limited to the eyes of $\mathbf{x}_1, \dots, \mathbf{x}_N$

    • $\mathcal{H}(\mathbf{x}_1, \dots, \mathbf{x}_N)$: all dichotomies implemented by $\cal H$ on $\mathbf{x}_1, \dots, \mathbf{x}_N$

        hypothesis $\cal H$ dichotomies $\mathcal{H}(\mathbf{x}_1, \dots, \mathbf{x}_N)$
      e.g. all lines in $\Bbb{R}^2$ $\lbrace {\color{Blue}{\circ}}{\color{Blue}{\circ}}{\color{Blue}{\circ}}{\color{Blue}{\circ}},{\color{Blue}{\circ}}{\color{Blue}{\circ}}{\color{Blue}{\circ}}{\color{Red}{\times}},{\color{Blue}{\circ}}{\color{Blue}{\circ}}{\color{Red}{\times}}{\color{Red}{\times}},\dots\rbrace$
      size possibly infinite upper bounded by $2^N$
    • $\vert \mathcal{H}(\mathbf{x}_1, \dots, \mathbf{x}_N) \vert$: candidate for replacing $M$

  • Growth function

    • $\vert \mathcal{H}(\mathbf{x}_1, \dots, \mathbf{x}_N) \vert$: depends on inputs $(\mathbf{x}_1, \dots, \mathbf{x}_N)$

    • growth function: remove dependence by taking $\max$ of all possible $(\mathbf{x}_1, \dots, \mathbf{x}_N)$

    • finite, upper-bounded by $2^N$

  • Growth function for positive rays

    image-20200702155748213

    • $\mathcal{X} = \Bbb{R}$ (one dimensional)
    • $\cal H$ contains $h$, where each $h(x) = \text{sign}(x-a)$ for threshold $a$
    • positive half of 1-D perceptrons
    • one dichotomy for $a \in$ each spot $(x_n, x_{n+1})$: $m_{\cal H}(N) = N + 1$
    • $(N+1) \ll 2^N$ when $N$ large!
  • Growth function for positive intervals

    image-20200702160043359

    • $\mathcal{X} = \Bbb{R}$ (one dimensional)

    • $\cal H$ contains $h$, where each $h(x) = +1 \text{ iff } x \in [\mathcal{l}, r), -1$ otherwise

    • one dichotomy for each interval kind:

    • $\frac{1}{2}N^2+\frac{1}{2}N+1 \ll 2^N$ when $N$ large!

  • Growth function for convex sets

    • $\mathcal{X} = \Bbb{R}^2$ (two dimensional)

    • $\cal H$ contains $h$, where each $h(x) = +1 \text{ iff $x$ in a convex region}, -1$ otherwise

    • one possible set of $N$ inputs: $\mathbf{x}_1, \dots, \mathbf{x}_N$ on a big circle

      image-20200702161025400

    • every dichotomy can be implemented by $\cal H$ using a convex region slightly extended from contour of positive inputs: $m_{\cal H} = 2^N$

    • call this $N$ inputs shattered by $\cal H$

    • $m_{\cal H}(N) = 2^N \Leftrightarrow$ exists $N$ inputs that can be shattered

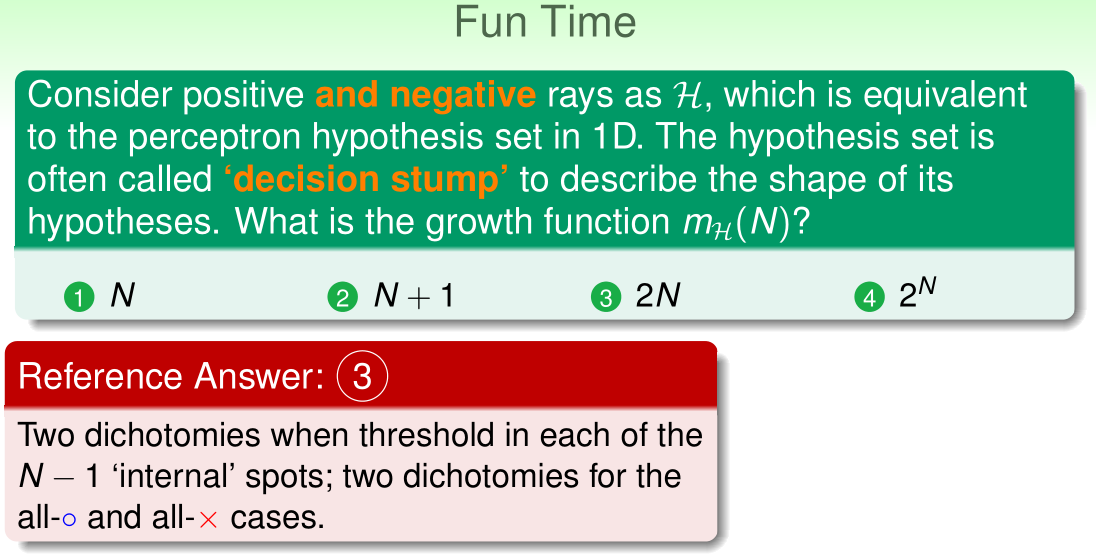

QUIZ

5.4 Break Point

  • The four growth functions


    • what if $m_{\cal H}(N)$ replaces $M$?

      • polynomial: good :+1:
      • exponential: bad :-1:
    • for 2D or general perceptron, $m_{\cal H}(N)$ polynomial (good)?

  • Break point of $\cal H$

    • what do we know about 2D perceptrons now?
      • three inputs: exists shatter
      • four inputs: for all no shatter
    • if no $k$ inputs can be shattered by $\cal H$, call $k$ a break point for $\cal H$
      • $m_{\cal H} < 2^k$
      • $k+1, k+2, \dots $ also break points!
      • will study minimum break point $k$
  • The four beak points

    image-20200702162231928

    • conjecture:
      • no break point: $m_{\cal H} = 2^N$ (sure!)
      • break point $k$: $m_{\cal H} = O(N^{k-1})$
        • exited? wait for next lecture ;-)

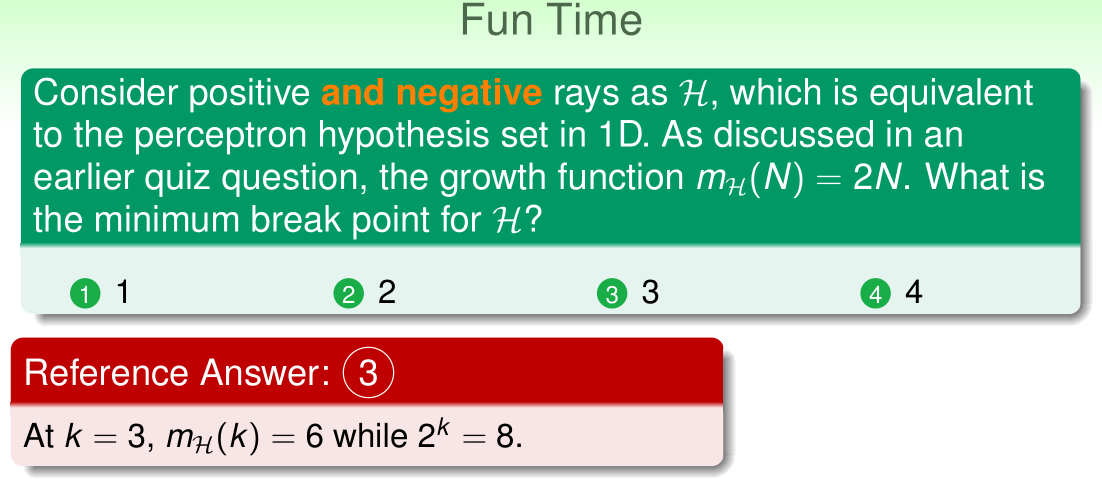

QUIZ

6 Theory of Generalization

Test error can approximate training error if there is enough data and growth function does not grow too fast …


6.1 Restiction of Break Point

  • The four break points

    image-20200702170735578

    • growth function $m_{\cal H}(N)$: max number of dichotomies
    • break point $k \Rightarrow$ break point $k + 1, \dots$
    • what else?
  • Restriction of break point

    • what must be true when minimum break point $k = 2$
      • $N = 1$: every $m_{\cal H}(N) = 2$ by definition
      • $N = 2$: every $m_{\cal H}(N) < 4$ by definition
        • (so maximum possible = 3)
      • $N = 3$: maximum possible $= 4 \ll 2^3$
    • break point $k$ restricts maximum possible $m_{\cal H}(N)$ a lot for $N > k$

    image-20200702172002753

QUIZ

6.2 Bounding Function: Basic Cases

  • Bounding function $B(N, k)$: maximum possible $m_{\cal H}(N)$ when break point $= k$
    • combinatorial quantity:
      • maximum number of length-$N$ vectors with $({\color{Red}{\times}},{\color{Blue}{\circ}})$ while “no shatter” any length-$k$ subvectors
    • irrelevant of the details of $\cal H$
      • e.g. $B(N, 3)$ bounds both
        • positive intervals ($k = 3$)
        • 1D perceptrons ($k = 3$)
    • new goal: $B(N, k) \le \text{poly}(N)$ ?

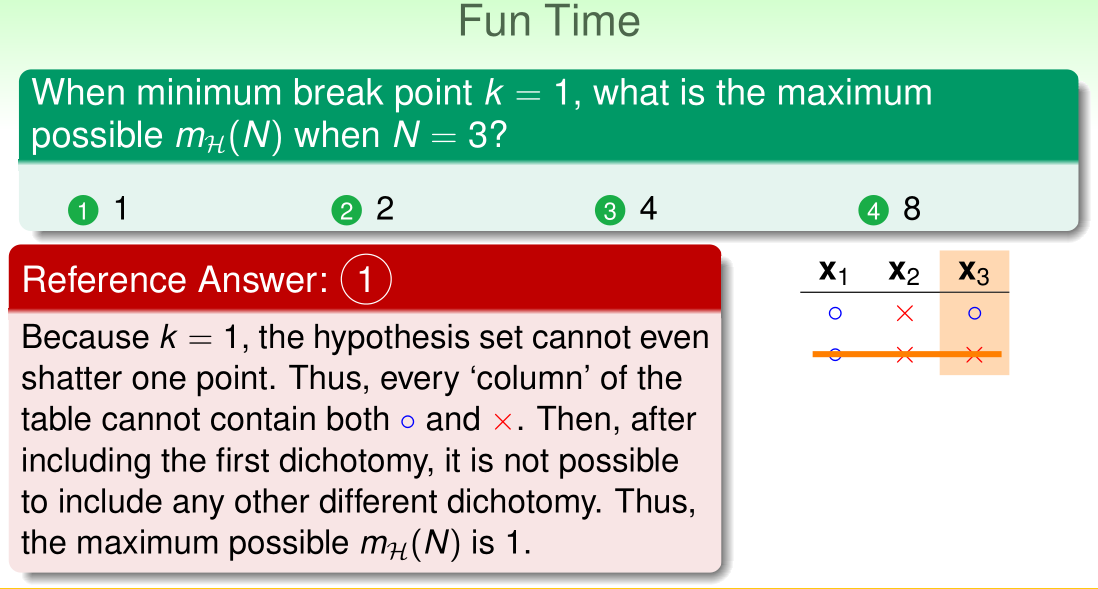

QUIZ

6.3 Bounding Function: Inductive Cases

  • Table of bounding funciton


    • Known
      • $B(N, 1) = 1$ (see previous quiz)
      • $B(N, k) = 2^N \text{ for } N < k$
      • $B(N, k) = 2^N-1 \text{ for } N = k$
    • $B(N, k) \le B(N-1, k) +B(N-1, k-1)$
      • (actually “$=$”)
    • Now have upper bound of bounding function
  • Bounding function: the theorem

    • simple induction using boundary and inductive formula
    • for fixed $k$, $B(N, k)$ upper bounded by $\text{poly}(N)$
      • $\Rightarrow m_{\cal H}(N)$ is $\text{poly}(N)$ if break points exists
    • ”$\le$” can be “$=$” actually
  • The three break points

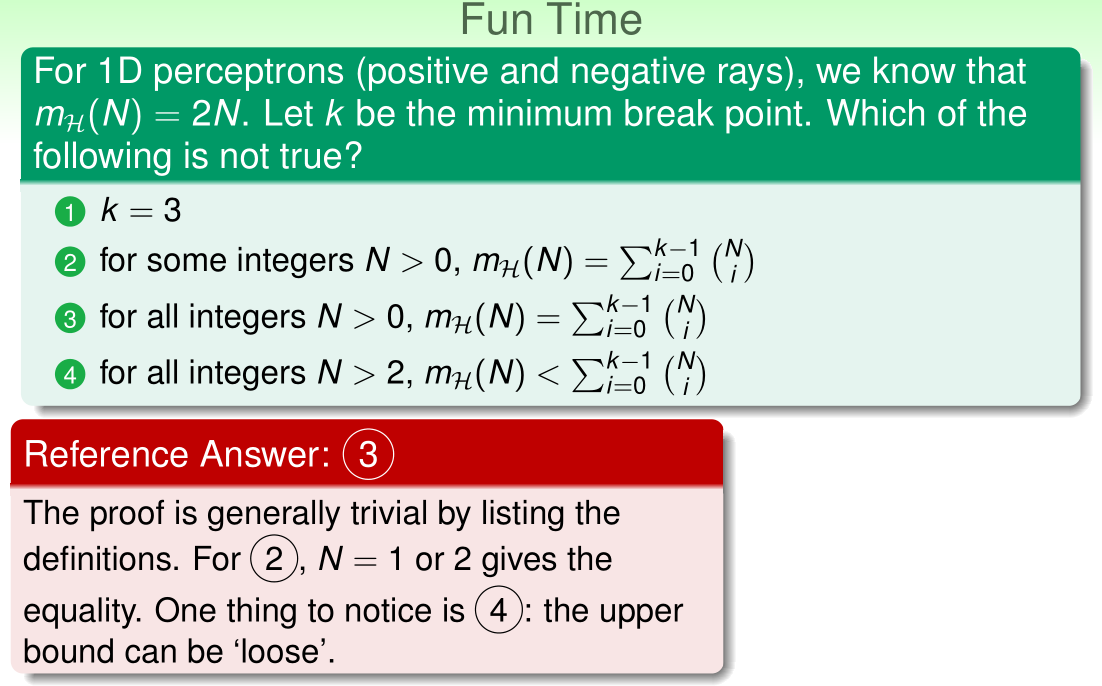

QUIZ

6.4 A Pictorial Proof

  • BAD Bound for General $\cal H$

    • want:

    • actually, when $N$ is large enough:

    • next: sketch of proof

  • Step 1: Replace $E_{out}$ by $E_{in}^{\prime}$

    • $E_{\text {in}}(h)$ finitely many, $E_{\text {out}}(h)$ infinitely many

      • replace the evil $E_{\text {out}}(h)$ first
    • how? sample verification set $\cal D^{\prime}$ of size $N$ to calculate $E_{\text {in}}^{\prime}$

      image-20200702194403759

    • BAD $h$ of $E_{\text {in}} - E_{\text {out}}$

      • $\stackrel{\text { probably }}{\Longrightarrow}$ BAD $h$ of $E_{\text {in}} - E_{\text {in}}^{\prime}$
  • Step 2: Decompose $\cal H$ by Kind

    • $E_{\text {in}}$ with $\cal D$, $E_{\text {in}}^{\prime}$ with $\cal D^{\prime}$
      • now $m_{\cal H}$ comes to play
    • how? infinite $\cal H$ becomes $\vert \mathcal{H}(\mathbf{x}_1, \dots, \mathbf{x}_N)\vert $ kinds
    • union bound on $m_{\cal H}(2N)$ kinds
  • Step 3: Use Hoeffding without Replacement

    • consider bin of $2N$ examples, choose $N$ for $E_{\text{in}}$,leave others for $E_{\text{in}}^{\prime}$
      • $\vert E_{\text{in}} - E_{\text{in}}^{\prime} \vert > \frac{\epsilon}{2} \Leftrightarrow \left \vert E_{\text{in}} - \frac{E_{\text{in}}+E_{\text{in}}^{\prime}}{2} \right\vert > \frac{\epsilon}{4}$
    • so? just similar bin, smaller $\epsilon$, and Hoeffding without replacement
  • That’s All! $\Rightarrow$ Vapnik-Chervonenkis( VC) bound:

    • replace $E_{\text{out}}$ by $E_{\text{in}}^{\prime}$
    • decompose $\cal H$ by kind
    • use Hoeffding without replacement
    • 2D perceptrons:
      • break point? 4
      • $m_{\cal H}(N)$? $O(N^3)$
      • learning with 2D perceptrons feasible! 🎉

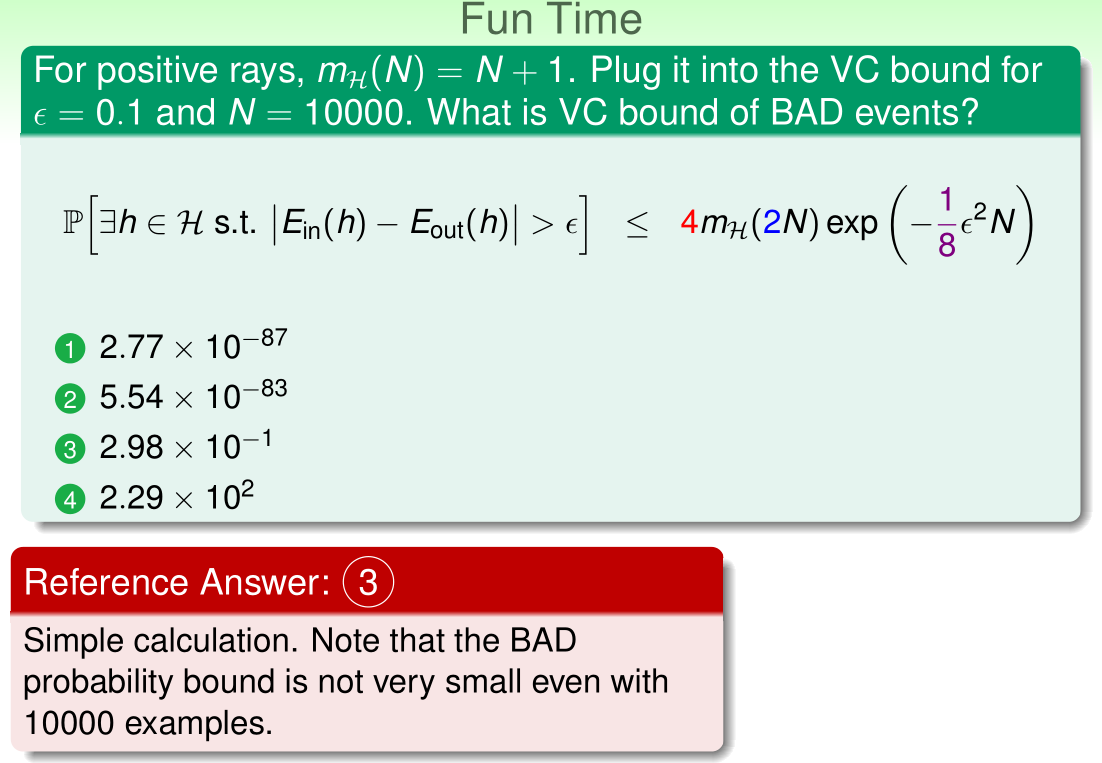

QUIZ

7 The VC Dimension

Learning happens if there is finite model complexity (called VC dimension), enough data, and low training error …


7.1 Definition of VC Dimension

  • Recap: More on Growth Function


  • Recap: More on Vapnik-Chervonenkis(VC) Bound


    • if:
      • ① $m_{\cal H}(N)$ breaks at $k$ (good $\cal H$)
      • ② $N$ large enough (good $\cal D$)
    • $\Rightarrow$ probably generalized $E_{out} \approx E_{in}$,
    • and if:
      • ③ $\cal A$ picks a $g$ with small $E_{in}$ (good $\cal A$)
    • $\Rightarrow$ probably learned! 🎉
  • VC Dimension

    • the formal name of maximum non-break point

    • Definition: VC dimension of $\cal H$, denoted $d_{\text{VC}}(\cal H)$ is

      • the most inputs $\cal H$ that can shatter
      • $d_{\text{VC}} = \min(k) - 1$
    • $N \leq d_{\text{VC}} \Rightarrow$

      • $\cal H$ can shatter some $N$ inputs
    • $N > d_{\text{VC}} \Rightarrow$

      • $N$ is a break point for $\cal H$
    • $\text{if } N \ge 2, d_{\text{VC}} \ge 2, m_{\cal H} \leq N^{d_{\text{VC}}}$

  • The Four VC Dimensions

    image-20200702202423140

  • VC Dimension and Learning

    • good $\Rightarrow$ finite $d_{\text{VC}}$ $\Rightarrow$ $g$ “will” generalize $(E_{out}(g) \approx E_{in}(g))$
    • regardless of learning algorithm $\cal A$
    • regardless of input distribution $P$
    • regardless of target function $f$

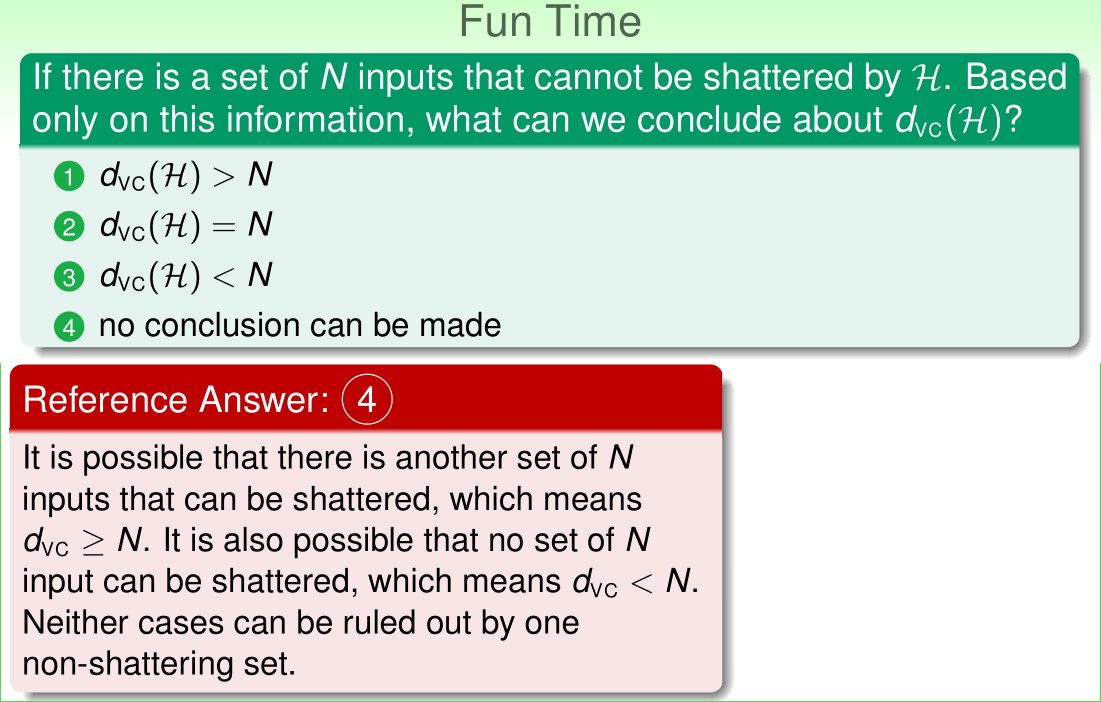

QUIZ

7.2 VC Dimension of Perceptrons

  • 2D PLA Revisited


    • general PLA for $\mathbf{x}$ with more that 2 features?
  • VC Dimension of Perceptrons

    • 1D perceptron (pos/neg rays): $d_{\text{VC}} = 2$
    • 2D perceptron: $d_{\text{VC}} = 3$
    • $d$-D perceptrons: $d_{\text{VC}} \mathop{=}^{?}d+1$

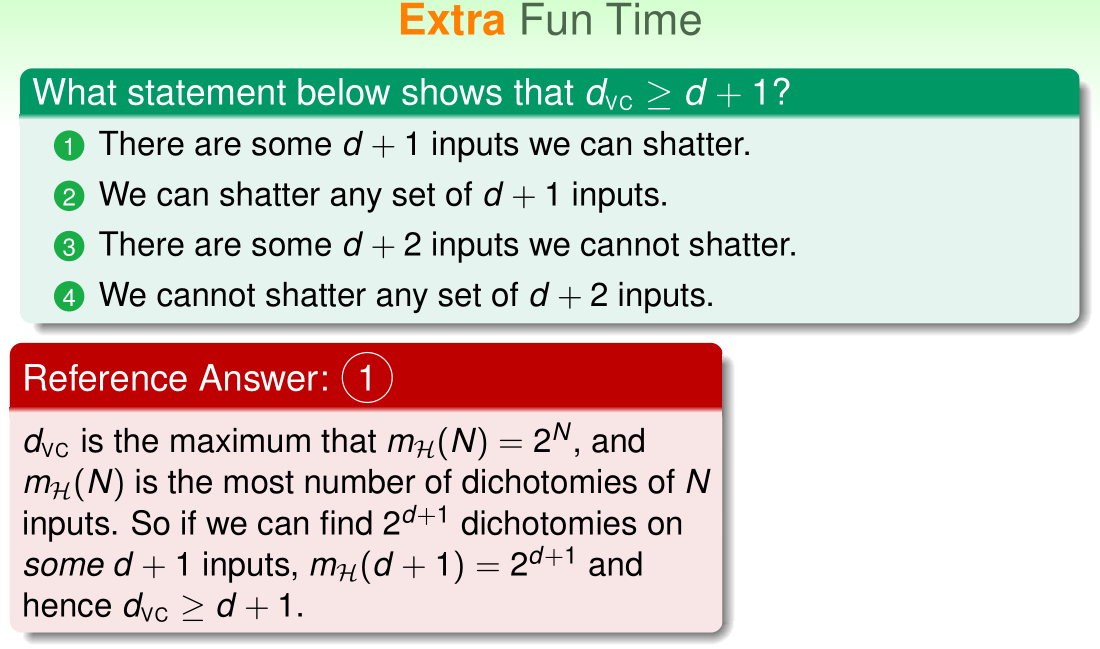

EXTRA QUIZ
  • $d_{\text{VC}} \ge d + 1$

    • There are some $d+1$ inputs we can shatter

    • some “trivial” inputs:

  • note: $\mathbf{X}$ invertible

  • to shatter …

    • for any $\bf y \in \Bbb{R}^{d+1}$, find $\mathbf{w}$ such that
      • $\text{sign}(\mathbf{Xw})=\mathbf{y} \Leftarrow \bf{Xw=y} \stackrel{X\text{ invertible!}}{\Longleftrightarrow} w= X^{-1}y $

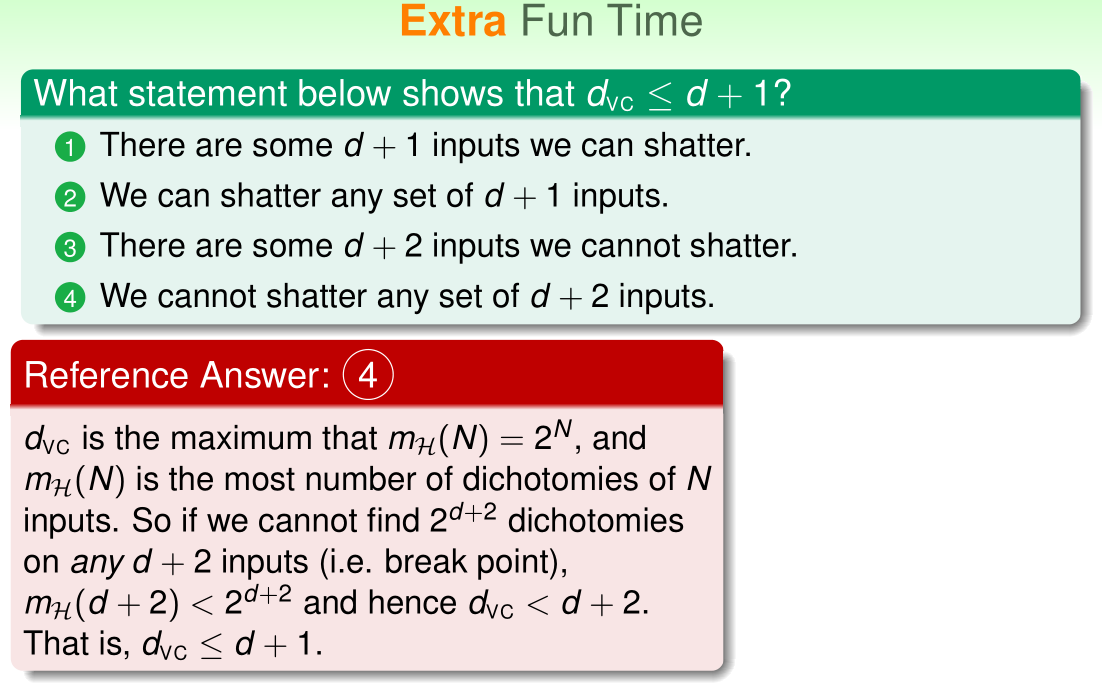

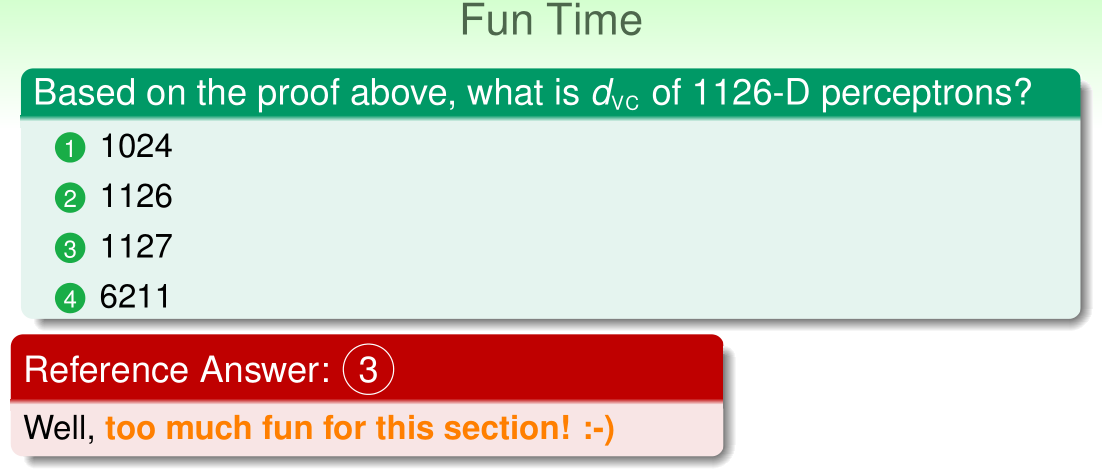

EXTRA QUIZ
  • $d_{\text{VC}} \ge d+1$

    • A 2D special case


    • $d$-D general case


    • general $\bf X$ no-shatter $\Rightarrow d_{\text{VC}}\le d+1$

QUIZ

7.3 Physical Intuition of VC Dimension

  • Degrees of Freedom

    • hypothesis parameters $\mathbf{w}=(w_0, w_1, \dots, w_d)$: creates degrees of freedom
    • hypothesis quantity $M = \vert \mathcal{H} \vert$: “analog” degrees of freedom
    • hypothesis power $d_{\text{VC}}=d+1$: effective “binary” degrees of freedom
    • $d_{\text{VC}}(\cal H)$: powerfulness of $\cal H$
  • Two Old Friends

    • Positive rays ($d_{\text{VC}}=1$)

      image-20200703091430075

      • free parameters: $a$
    • Positive intervals ($d_{\text{VC}}=2$):

      image-20200703091507066

      • free parameters: $\mathcal{l}, r$
    • pratical rule of thumb: $d_{\text{VC}} \approx \text{#free parameters}$ (but not always)

  • $M$ and $d_{\text{VC}}$

    image-20200703091718409

    • using the right $d_{\text{VC}}$ (or $\cal H$) is important

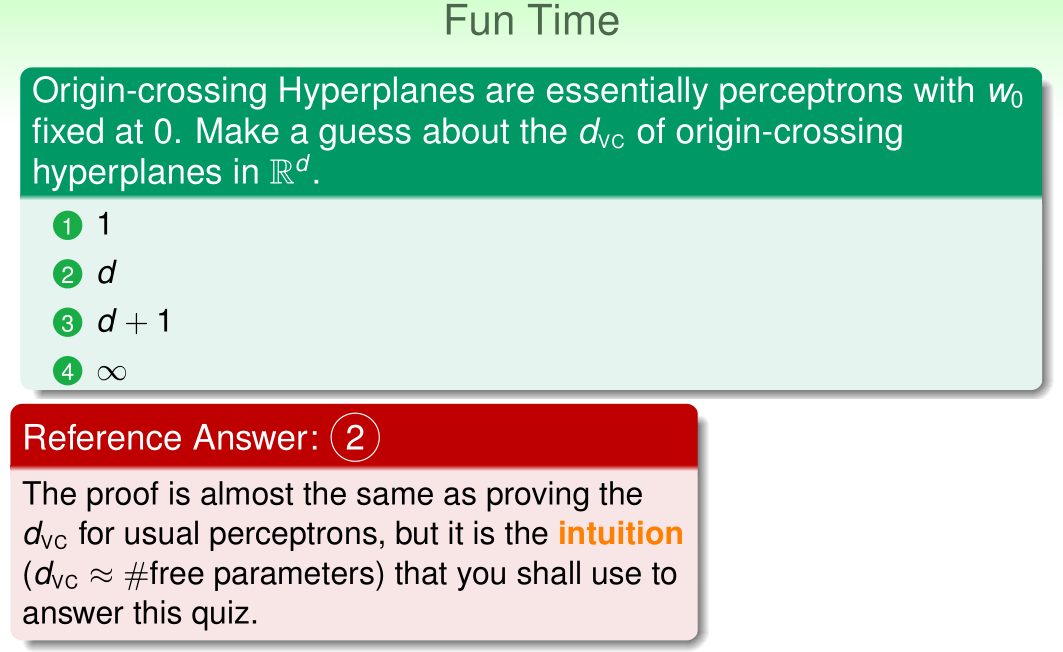

QUIZ

7.4 Interpreting VC Dimension

  • VC Bound Rephrase: Penalty for Model Complexity

    • For any ${\color{Red}{g}={\color{Red}{\cal A}}}({\color{Blue}{\cal D}}) \in \mathcal {\color{Orange}{H}}$ and statistical large $\cal D$, for $d_{\text{VC}} \ge 2$:

    • Rephrase: with prbability $\ge 1 - \delta$, GOOD: $\left\vert E_{\text {in }}(g)-E_{\text {out }}(g)\right\vert \leq \epsilon$

    • generalization error $\left\vert E_{\text {in }}(g)-E_{\text {out }}(g)\right\vert \le \sqrt{\frac{8}{\color{Blue} N } \ln \left(\frac{4{\color{Orange} (2 N)^{d_{\mathrm{VC}}}} }{\color{Purple} \delta }\right)} $

    • $E_{\text {in }}(g)- \sqrt{\frac{8}{\color{Blue} N} \ln \left(\frac{4{\color{Orange} (2 N)^{d_{\mathrm{VC}}}} }{\color{Purple} \delta} \right)} \le E_{\text {out }}(g) \le E_{\text{in}}(g) + \sqrt{\frac{8}{\color{Blue} N} \ln \left(\frac{4{\color{Orange} (2 N)^{d_{\mathrm{VC}}}} }{\color{Purple} \delta} \right)}$

    • $\underbrace{\sqrt{\cdots}}_{\Omega(N, \mathcal{H}, \delta)}$: penalty for model complexity

  • THE VC Message

    • with a high probability, $E_{\text {out }}(g) \le E_{\text{in}}(g) + \underbrace{\sqrt{\frac{8}{\color{Blue} N} \ln \left(\frac{4{\color{Orange} (2 N)^{d_{\mathrm{VC}}}} }{\color{Purple} \delta }\right)}}_{\Omega(N, \mathcal{H}, \delta)}$
    • image-20200703093855894
    • powerful $\cal H$ not always good!
  • VC Bound Rephrase: Sample Complexity

    image-20200703094157104

    • practical rule of thumb:
      • $N \approx 10 d_{\text{VC}}$ often enough!
  • Looseness of VC Bound

    • theory: $N \approx 10,000\ d_{\text{VC}}$; practice: $N \approx 10\ d_{\text{VC}}$

    • Why?

      image-20200703094549579

    • philosophical message of VC bound: important for improving ML

QUIZ

8 Noise and Error

Learning can still happen within a noisy environment and different error measures …

image-20200703114018117

8.1 Noise and Probabilistic Target

  • Recap: The Learning Flow

    • what if there is noise?
  • Noise

    • Probabilistic Marbles


  • Target Distribution $P(y\vert\mathbf{x})$: characterizes behavior of “mini-target” on one $\bf x$

    image-20200703102917421

    • goal of learning:
      • predict ideal mini-target (w.r.t. $P(y\vert \mathbf{x})$) on often-seen inputs (w.r.t $P(\mathbf{x})$)
  • The New Learning Flow

    image-20200703103311023

QUIZ

8.2 Error Measure

  • Error Measure: final hypothesis $g \approx f$

    • how well? previously, considered out-of-sample measure

    • more generally, error measure $E(g, f)$
    • naturally considered
      • out-of-sample: averaged over unknown $\bf x$
      • pointwise: evaluated on one $\bf x$
      • classification: $[\text{prediction} \ne \text{target}]$
    • classification error often also called “0/1 error”
  • Pointwise Error Measure

    • can often express $E(g,f)$ = averaged $\mathop{\text{err}}(g(\mathbf{x}),f(\mathbf{x}))$, like

      • $\text{err}$: called pointwise error measure
    • in-sample:

    • out-of-sample:

    • will mainly consider pointwise $\operatorname{err}$ for simplicity

  • Two Important Pointwise Error Measure: $\operatorname{err}(g(\mathbf{x}), f(\mathbf{x})) = \operatorname{err}(\tilde{y}, y)$

    • 0/1 error: $\operatorname{err}(\tilde{y}, y)=[\tilde{y} \neq y]$
      • correct or incorrect?
      • often for classification
    • squared error: $\operatorname{err}(\tilde{y}, y)=(\tilde{y}-y)^{2}$
      • how far is $\tilde{y}$ from $y$?
      • often for regression
    • how does $\operatorname{err}$ “guide” learning?
  • Ideal Mini-Target

    • interplay between noise and error

      • $P(y\vert \mathbf{x})$ and $\text{err}$ define ideal mini-target $f(\mathbf{x})$
    • e.g.

      image-20200703105045991

  • Learning Flow with Error Measure


    • extended VC theory/”philosophy” works for most $\cal H$ and $\text{err}$

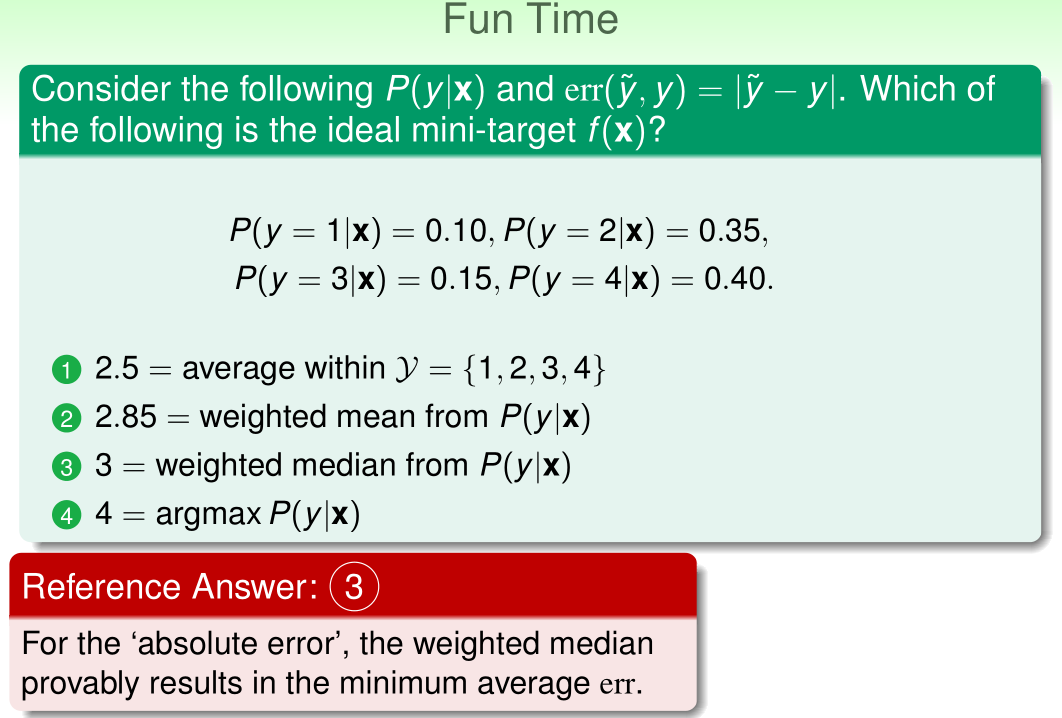

QUIZ

8.3 Algorithmic Error Measure

  • Choice of Error Measure

    image-20200703105658110

    • two types of error: false accept and false reject

      image-20200703105815077

    • 0/1 error penalizes both types equally

    • Fingerprint verification for supermarket

      image-20200703110027922

      • supermarket: fingerprint for discount
      • false reject

        : very unhappy customer, lose future business

      • false accept

        : give away a minor discount, intruder left fingerprint

    • Fingerprint verification for CIA

      image-20200703110201545

      • CIA: fingerprint for entrance
      • false accept

        : very serious consequences!

      • false reject

        : unhappy employee, but so what?

  • Take-home Message for Now: $\text{err}$ is application/user-dependent

    • Algorithmic Error Measures $\widehat{\text{err}}$
      • true: just $\text{err}$
      • plausible:
        • 0/1: minimum “flipping noise”—NP-hard to optimize, remember?
        • squared: minimum Gaussian noise
      • friendly: easy to optimize for $\cal A$
        • closed-form solution
        • convex objective function
    • $\widehat{\text{err}}$: more in next lectures
  • Learning Flow with Algorithmic Error Measure

    image-20200703110812770

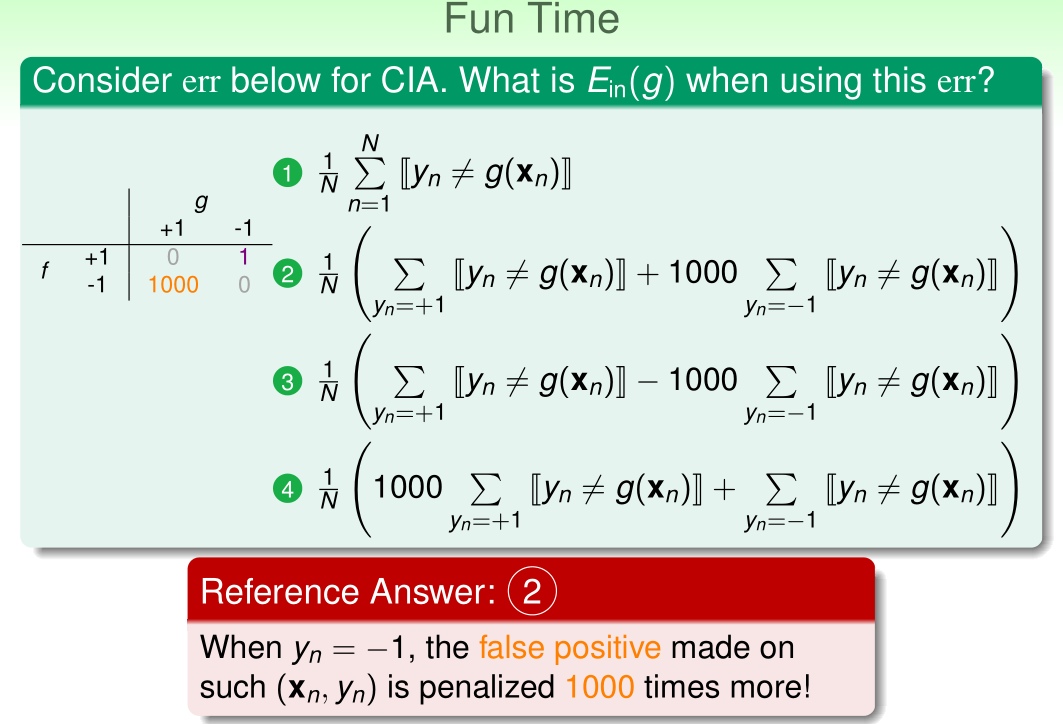

QUIZ

8.4 Weighted Classification

  • Weighted Classification

    • CIA cost (error, loss) matrix

      image-20200703110201545

    • out-of-sample

    • in-sample

    • weighted classification: different “weight” for different $(\mathbf{x},y)$

  • Minimizing $E_{\text{in}}$ for Weighted Classification

    • Naïve Thoughts
    • PLA: doesn’t matter if linear separable
      • pocket: modify pocket-replacement rule
        • if $\mathbf{w}_ {t+1}$ reaches smaller $ E_ {\mathrm{in}}^{\mathrm{w}}$ than $\hat{\mathbf{w}}$, replace $\hat{\bf w}$ by $\mathbf{w}_ {t+1}$
    • But
      • pocket: some guarantee on $ E_{\mathrm{in}}^{0/1}$
      • modified pocket: similar guarantee on $ E_{\mathrm{in}}^{\mathrm{w}}$?
  • Systematic Route: Connect $E_{\mathrm{in}}^{\mathrm{w}}$ and $E_{\mathrm{in}}^{\mathrm{0/1}}$

    image-20200703113020927

    • after copying “-1” examples 1,000 times, $E_{\mathrm{in}}^{\mathrm{w}} \text{ for LHA} \equiv E_{\mathrm{in}}^{\mathrm{0/1}} \text{ for RHS}$!
  • Weighted Pocket Algorithm

    • using “virtual copying”, weighted pocket algorithm include:
      • weighted PLA:
        • randomly check “-1” example mistakes with 1000 times more probability
      • weighted pocket replacement:
        • if $\mathbf{w}_ {t+1}$ reaches smaller $ E_ {\mathrm{in}}^{\mathrm{w}}$ than $\hat{\mathbf{w}}$, replace $\hat{\bf w}$ by $\mathbf{w}_ {t+1}$
    • systematic route (called “reduction”):
      • can be applied to many other algorithms!

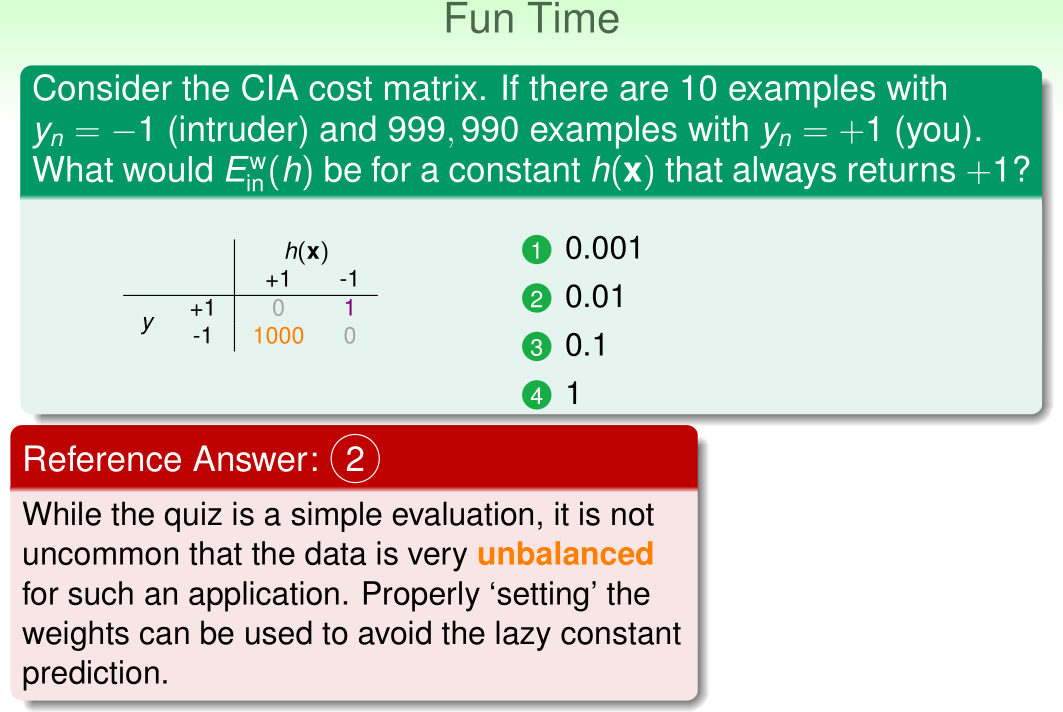

QUIZ

Thistledown
